property Clip.RoundRectangle as ClipRoundRectangle
Gets access to the layer's round rectangle clip object.

TypeDescription
ClipRoundRectangle A ClipRoundRectangle object that holds information about rectangular clip region
The RoundRectangle property gets access to the layer's round rectangular clip object.

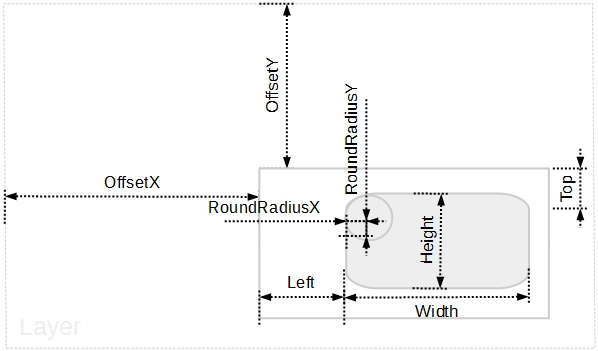

The following screen shot shows properties of the clipping objects relative to the layer (InverseClip property is False, by default):

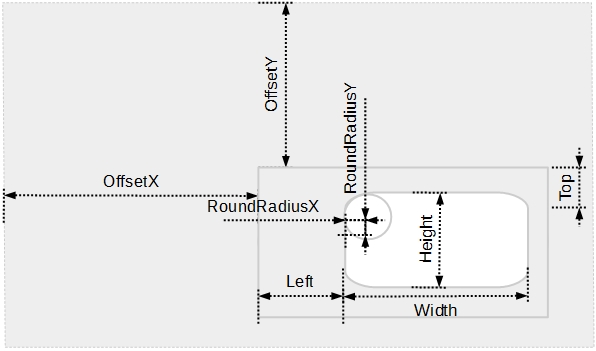

The following screen shot shows properties of the clipping objects relative to the layer (InverseClip property is True):

To define or specify the position / size of the rectangular clip object you can use any of the following properties:

To move the clipping region you can use any of the following properties:

If none of these properties are calling no clipping is applied to layer.

The InverseClip property inverses the current clipping region, so anything that was included in the clipping region will be excluded, and reverse.

For instance, having the following gauge:

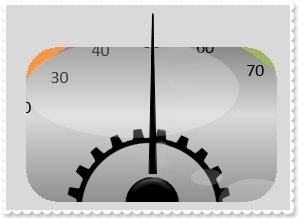

a round rectangular clip region over the background layer shows as:
