Layer.ToolTip Property (ExGauge)

By default, the ToolTip / ToolTipTitle property is empty, which indicates no tooltip. The ToolTip gets or sets a value (tooltip) that's displayed once the cursor hovers the layer. The ToolTipTitle property indicates the title of the layer's tooltip. The layer's tooltip is shown if any of the ToolTip / ToolTipTitle property is not empty. The ToolTipDelay property specifies the time in ms that passes before the ToolTip appears. Use the ToolTipWidth property to specify the width of the tooltip window Use the ToolTipPopDelay property specifies the period in ms of time the ToolTip remains visible if the mouse pointer is stationary within a control. Use the ToolTipFont property to change the tooltip's font. Use the Background(exToolTipAppearance) property indicates the visual appearance of the borders of the tooltips. Use the Background(exToolTipBackColor) property indicates the tooltip's background color. Use the Background(exToolTipForeColor) property indicates the tooltip's foreground color. Use the ShowToolTip method to display a custom tooltip. The DefaultLayer(exDefLayerToolTip) property specifies the default value of the ToolTip property.

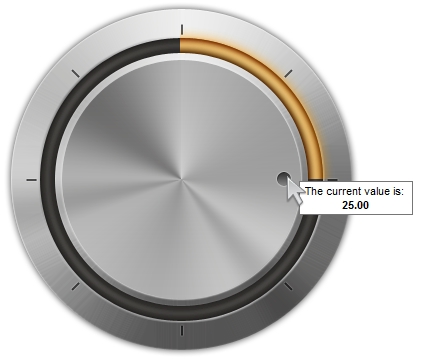

The following screen shot shows the current value as a tooltip :

The ToolTip supports the following built-in HTML format:

 bold  bolds a part of the caption.
 underline  specifies that the portion should appear as underlined.
<s> ~~strikeout~~ </s> specifies that the portion should appear as strikeout.
 italic  specifies that the portion should appear as italic.
<fgcolor=FF0000> fgcolor </fgcolor> changes the foreground color for a portion.
<bgcolor=FF0000> bgcolor </bgcolor> changes the background color for a portion.
  breaks a line.
<c> centers the text.
<r> aligns the rest of the text line to the right side. It has no effect if the caption contains a single line.
<img>number[:width]</img> inserts an icon inside the cell's caption. The number indicates the index of the icon being inserted. The width is optional and indicates the width of the icon being inserted. Using the width option you can overwrite multiple icons getting a nice effect. By default, if the width field is missing, the width is 18 pixels. The Images method specifies the list of icons the control can display.
<img>key[:width]</img> inserts a custom size picture being loaded using the HTMLPicture property. The Key parameter indicates the key of the picture being displayed. The Width parameter indicates a custom size, if you require to stretch the picture, else the original size of the picture is used.
 ...  displays portions of text with a different font and/or different size. For instance, the bit draws the bit text using the Tahoma font, on size 12 pt. If the name of the font is missing, and instead size is present, the current font is used with a different size. For instance, bit displays the bit text using the current font, but with a different size.
<solidline> draws a solid line. If has no effect for a single line caption.
<dotline> draws a dotted line. If has no effect for a single line caption.
<upline> draws the line to the top of the text line

Newer HTML format supports subscript and superscript like follows:

<off offset> ... </off> defines the vertical offset to display the text/element. The offset parameter defines the offset to display the element. This tag is inheritable, so the offset is keep while the associated </off> tag is found. You can use the <off offset> HTML tag in combination with the to define a smaller or a larger font to be displayed. For instance: "Text with <off 6>subscript" displays the text such as: Text with _subscriptThe "Text with <off -6>superscript" displays the text such as: Text with ^subscript

Newer HTML format supports decorative text like follows:

<gra rrggbb;mode;blend> ... </gra> defines a gradient text. The text color or <fgcolor> defines the starting gradient color, while the rr/gg/bb represents the red/green/blue values of the ending color, 808080 if missing as gray. The mode is a value between 0 and 4, 1 if missing, and blend could be 0 or 1, 0 if missing. The HTML tag can be used to define the height of the font. Any of the rrggbb, mode or blend field may not be specified. The <gra> with no fields, shows a vertical gradient color from the current text color to gray (808080). For instance the "<gra FFFFFF;1;1>gradient-center</gra>" generates the following picture:
<out rrggbb;width> ... </out> shows the text with outlined characters, where rr/gg/bb represents the red/green/blue values of the outline color, 808080 if missing as gray, width indicates the size of the outline, 1 if missing. The text color or <fgcolor> defines the color to show the inside text. The HTML tag can be used to define the height of the font. For instance the "<out 000000><fgcolor=FFFFFF>outlined</fgcolor></out>" generates the following picture:

<sha rrggbb;width;offset> ... </sha> define a text with a shadow, where rr/gg/bb represents the red/green/blue values of the shadow color, 808080 if missing as gray, width indicates the size of shadow, 4 if missing, and offset indicates the offset from the origin to display the text's shadow, 2 if missing. The text color or <fgcolor> defines the color to show the inside text. The HTML tag can be used to define the height of the font. For instance the "<sha>shadow</sha>" generates the following picture:

or "<sha 404040;5;0><fgcolor=FFFFFF>outline anti-aliasing</fgcolor></sha>" gets:

The following samples display the current value, when cursor hover the know:

VBA (MS Access, Excell...)

' MouseIn event - Notifies that the cursor enters the layer.
Private Sub Gauge1_MouseIn(ByVal Layer As Long)
	With Gauge1
		.Layers.Item(9).ToolTip = Gauge1.FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",Gauge1.Value)
	End With
End Sub

With Gauge1
	.BeginUpdate
	.PicturesPath = "C:\Program Files\Exontrol\ExGauge\Sample\Design\Circular\Knob"
	.PicturesName = "`Layer` + str(value + 1) + `.png`"
	.Layers.Count = 10
	With .Layers.Item(9)
		.DefaultRotateAngle = -126
		.OnDrag = 3
		.RotateAngleToValue = "100 - value / 360 * 100"
		.ValueToRotateAngle = "(value)/100 * 360"
	End With
	.Layers.Item(3).Visible = False
	.Layers.Item(4).Visible = False
	.Layers.Item(9).Value = 25
	.EndUpdate
End With

VB6

' MouseIn event - Notifies that the cursor enters the layer.
Private Sub Gauge1_MouseIn(ByVal Layer As Long)
	With Gauge1
		.Layers.Item(9).ToolTip = Gauge1.FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",Gauge1.Value)
	End With
End Sub

With Gauge1
	.BeginUpdate
	.PicturesPath = "C:\Program Files\Exontrol\ExGauge\Sample\Design\Circular\Knob"
	.PicturesName = "`Layer` + str(value + 1) + `.png`"
	.Layers.Count = 10
	With .Layers.Item(9)
		.DefaultRotateAngle = -126
		.OnDrag = exDoRotamove
		.RotateAngleToValue = "100 - value / 360 * 100"
		.ValueToRotateAngle = "(value)/100 * 360"
	End With
	.Layers.Item(3).Visible = False
	.Layers.Item(4).Visible = False
	.Layers.Item(9).Value = 25
	.EndUpdate
End With

VB.NET

' MouseIn event - Notifies that the cursor enters the layer.
Private Sub Exgauge1_MouseIn(ByVal sender As System.Object,ByVal Layer As Integer) Handles Exgauge1.MouseIn
	With Exgauge1
		.Layers.Item(9).ToolTip = Exgauge1.FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",Exgauge1.Value)
	End With
End Sub

With Exgauge1
	.BeginUpdate()
	.PicturesPath = "C:\Program Files\Exontrol\ExGauge\Sample\Design\Circular\Knob"
	.PicturesName = "`Layer` + str(value + 1) + `.png`"
	.Layers.Count = 10
	With .Layers.Item(9)
		.DefaultRotateAngle = -126
		.OnDrag = exontrol.EXGAUGELib.OnDragLayerEnum.exDoRotamove
		.RotateAngleToValue = "100 - value / 360 * 100"
		.ValueToRotateAngle = "(value)/100 * 360"
	End With
	.Layers.Item(3).Visible = False
	.Layers.Item(4).Visible = False
	.Layers.Item(9).Value = 25
	.EndUpdate()
End With

VB.NET for /COM

' MouseIn event - Notifies that the cursor enters the layer.
Private Sub AxGauge1_MouseIn(ByVal sender As System.Object, ByVal e As AxEXGAUGELib._IGaugeEvents_MouseInEvent) Handles AxGauge1.MouseIn
	With AxGauge1
		.Layers.Item(9).ToolTip = AxGauge1.FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",AxGauge1.Value)
	End With
End Sub

With AxGauge1
	.BeginUpdate()
	.PicturesPath = "C:\Program Files\Exontrol\ExGauge\Sample\Design\Circular\Knob"
	.PicturesName = "`Layer` + str(value + 1) + `.png`"
	.Layers.Count = 10
	With .Layers.Item(9)
		.DefaultRotateAngle = -126
		.OnDrag = EXGAUGELib.OnDragLayerEnum.exDoRotamove
		.RotateAngleToValue = "100 - value / 360 * 100"
		.ValueToRotateAngle = "(value)/100 * 360"
	End With
	.Layers.Item(3).Visible = False
	.Layers.Item(4).Visible = False
	.Layers.Item(9).Value = 25
	.EndUpdate()
End With

C++

// MouseIn event - Notifies that the cursor enters the layer.
void OnMouseInGauge1(long   Layer)
{
	/*
		Copy and paste the following directives to your header file as
		it defines the namespace 'EXGAUGELib' for the library: 'ExGauge 1.0 Control Library'
		#import <ExGauge.dll>
		using namespace EXGAUGELib;
	*/
	EXGAUGELib::IGaugePtr spGauge1 = GetDlgItem(IDC_GAUGE1)->GetControlUnknown();
	spGauge1->GetLayers()->GetItem(long(9))->PutToolTip(_bstr_t(spGauge1->FormatABC(L"`The current value is: <br><c><b>` + ((100 - A) format ``)",spGauge1->GetValue(),vtMissing,vtMissing)));
}

EXGAUGELib::IGaugePtr spGauge1 = GetDlgItem(IDC_GAUGE1)->GetControlUnknown();
spGauge1->BeginUpdate();
spGauge1->PutPicturesPath(L"C:\\Program Files\\Exontrol\\ExGauge\\Sample\\Design\\Circular\\Knob");
spGauge1->PutPicturesName(L"`Layer` + str(value + 1) + `.png`");
spGauge1->GetLayers()->PutCount(10);
EXGAUGELib::ILayerPtr var_Layer = spGauge1->GetLayers()->GetItem(long(9));
	var_Layer->PutDefaultRotateAngle(-126);
	var_Layer->PutOnDrag(EXGAUGELib::exDoRotamove);
	var_Layer->PutRotateAngleToValue(L"100 - value / 360 * 100");
	var_Layer->PutValueToRotateAngle(L"(value)/100 * 360");
spGauge1->GetLayers()->GetItem(long(3))->PutVisible(VARIANT_FALSE);
spGauge1->GetLayers()->GetItem(long(4))->PutVisible(VARIANT_FALSE);
spGauge1->GetLayers()->GetItem(long(9))->PutValue(long(25));
spGauge1->EndUpdate();

C++ Builder

// MouseIn event - Notifies that the cursor enters the layer.
void __fastcall TForm1::Gauge1MouseIn(TObject *Sender,long   Layer)
{
	Gauge1->Layers->get_Item(TVariant(9))->ToolTip = PChar(Gauge1->FormatABC(L"`The current value is: <br><c><b>` + ((100 - A) format ``)",TVariant(Gauge1->get_Value()),TNoParam(),TNoParam()));
}

Gauge1->BeginUpdate();
Gauge1->PicturesPath = L"C:\\Program Files\\Exontrol\\ExGauge\\Sample\\Design\\Circular\\Knob";
Gauge1->PicturesName = L"`Layer` + str(value + 1) + `.png`";
Gauge1->Layers->Count = 10;
Exgaugelib_tlb::ILayerPtr var_Layer = Gauge1->Layers->get_Item(TVariant(9));
	var_Layer->DefaultRotateAngle = -126;
	var_Layer->OnDrag = Exgaugelib_tlb::OnDragLayerEnum::exDoRotamove;
	var_Layer->RotateAngleToValue = L"100 - value / 360 * 100";
	var_Layer->ValueToRotateAngle = L"(value)/100 * 360";
Gauge1->Layers->get_Item(TVariant(3))->Visible = false;
Gauge1->Layers->get_Item(TVariant(4))->Visible = false;
Gauge1->Layers->get_Item(TVariant(9))->set_Value(TVariant(25));
Gauge1->EndUpdate();

// MouseIn event - Notifies that the cursor enters the layer.
private void exgauge1_MouseIn(object sender,int   Layer)
{
	exgauge1.Layers[9].ToolTip = exgauge1.FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",exgauge1.Value,null,null).ToString();
}
//this.exgauge1.MouseIn += new exontrol.EXGAUGELib.exg2antt.MouseInEventHandler(this.exgauge1_MouseIn);

exgauge1.BeginUpdate();
exgauge1.PicturesPath = "C:\\Program Files\\Exontrol\\ExGauge\\Sample\\Design\\Circular\\Knob";
exgauge1.PicturesName = "`Layer` + str(value + 1) + `.png`";
exgauge1.Layers.Count = 10;
exontrol.EXGAUGELib.Layer var_Layer = exgauge1.Layers[9];
	var_Layer.DefaultRotateAngle = -126;
	var_Layer.OnDrag = exontrol.EXGAUGELib.OnDragLayerEnum.exDoRotamove;
	var_Layer.RotateAngleToValue = "100 - value / 360 * 100";
	var_Layer.ValueToRotateAngle = "(value)/100 * 360";
exgauge1.Layers[3].Visible = false;
exgauge1.Layers[4].Visible = false;
exgauge1.Layers[9].Value = 25;
exgauge1.EndUpdate();

JScript/JavaScript

<BODY onload="Init()">
<SCRIPT FOR="Gauge1" EVENT="MouseIn(Layer)" LANGUAGE="JScript">
	Gauge1.Layers.Item(9).ToolTip = Gauge1.FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",Gauge1.Value,null,null);
</SCRIPT>

<OBJECT CLASSID="clsid:91628F12-393C-44EF-A558-83ED1790AAD3" id="Gauge1"></OBJECT>

<SCRIPT LANGUAGE="JScript">
function Init()
{
	Gauge1.BeginUpdate();
	Gauge1.PicturesPath = "C:\\Program Files\\Exontrol\\ExGauge\\Sample\\Design\\Circular\\Knob";
	Gauge1.PicturesName = "`Layer` + str(value + 1) + `.png`";
	Gauge1.Layers.Count = 10;
	var var_Layer = Gauge1.Layers.Item(9);
		var_Layer.DefaultRotateAngle = -126;
		var_Layer.OnDrag = 3;
		var_Layer.RotateAngleToValue = "100 - value / 360 * 100";
		var_Layer.ValueToRotateAngle = "(value)/100 * 360";
	Gauge1.Layers.Item(3).Visible = false;
	Gauge1.Layers.Item(4).Visible = false;
	Gauge1.Layers.Item(9).Value = 25;
	Gauge1.EndUpdate();
}
</SCRIPT>
</BODY>

VBScript

<BODY onload="Init()">
<SCRIPT LANGUAGE="VBScript">
Function Gauge1_MouseIn(Layer)
	With Gauge1
		.Layers.Item(9).ToolTip = Gauge1.FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",Gauge1.Value)
	End With
End Function
</SCRIPT>

<OBJECT CLASSID="clsid:91628F12-393C-44EF-A558-83ED1790AAD3" id="Gauge1"></OBJECT>

<SCRIPT LANGUAGE="VBScript">
Function Init()
	With Gauge1
		.BeginUpdate
		.PicturesPath = "C:\Program Files\Exontrol\ExGauge\Sample\Design\Circular\Knob"
		.PicturesName = "`Layer` + str(value + 1) + `.png`"
		.Layers.Count = 10
		With .Layers.Item(9)
			.DefaultRotateAngle = -126
			.OnDrag = 3
			.RotateAngleToValue = "100 - value / 360 * 100"
			.ValueToRotateAngle = "(value)/100 * 360"
		End With
		.Layers.Item(3).Visible = False
		.Layers.Item(4).Visible = False
		.Layers.Item(9).Value = 25
		.EndUpdate
	End With
End Function
</SCRIPT>
</BODY>

C# for /COM

// MouseIn event - Notifies that the cursor enters the layer.
private void axGauge1_MouseIn(object sender, AxEXGAUGELib._IGaugeEvents_MouseInEvent e)
{
	axGauge1.Layers[9].ToolTip = axGauge1.FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",axGauge1.Value,null,null).ToString();
}
//this.axGauge1.MouseIn += new AxEXGAUGELib._IGaugeEvents_MouseInEventHandler(this.axGauge1_MouseIn);

axGauge1.BeginUpdate();
axGauge1.PicturesPath = "C:\\Program Files\\Exontrol\\ExGauge\\Sample\\Design\\Circular\\Knob";
axGauge1.PicturesName = "`Layer` + str(value + 1) + `.png`";
axGauge1.Layers.Count = 10;
EXGAUGELib.Layer var_Layer = axGauge1.Layers[9];
	var_Layer.DefaultRotateAngle = -126;
	var_Layer.OnDrag = EXGAUGELib.OnDragLayerEnum.exDoRotamove;
	var_Layer.RotateAngleToValue = "100 - value / 360 * 100";
	var_Layer.ValueToRotateAngle = "(value)/100 * 360";
axGauge1.Layers[3].Visible = false;
axGauge1.Layers[4].Visible = false;
axGauge1.Layers[9].Value = 25;
axGauge1.EndUpdate();

X++ (Dynamics Ax 2009)

// MouseIn event - Notifies that the cursor enters the layer.
void onEvent_MouseIn(int   _Layer)
{
	COM com_Layer;
	anytype var_Layer;
	;
	var_Layer = COM::createFromObject(exgauge1.Layers()).Item(COMVariant::createFromInt(9)); com_Layer = var_Layer;
	com_Layer.ToolTip(exgauge1.FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",exgauge1.Value()));
}

public void init()
{
	COM com_Layer,com_Layer1;
	anytype var_Layer,var_Layer1;
	;

	super();

	exgauge1.BeginUpdate();
	exgauge1.PicturesPath("C:\\Program Files\\Exontrol\\ExGauge\\Sample\\Design\\Circular\\Knob");
	exgauge1.PicturesName("`Layer` + str(value + 1) + `.png`");
	exgauge1.Layers().Count(10);
	var_Layer = COM::createFromObject(exgauge1.Layers()).Item(COMVariant::createFromInt(9)); com_Layer = var_Layer;
		com_Layer.DefaultRotateAngle(-126);
		com_Layer.OnDrag(3/*exDoRotamove*/);
		com_Layer.RotateAngleToValue("100 - value / 360 * 100");
		com_Layer.ValueToRotateAngle("(value)/100 * 360");
	var_Layer1 = COM::createFromObject(exgauge1.Layers()).Item(COMVariant::createFromInt(3)); com_Layer1 = var_Layer1;
	com_Layer1.Visible(false);
	var_Layer1 = COM::createFromObject(exgauge1.Layers()).Item(COMVariant::createFromInt(4)); com_Layer1 = var_Layer1;
	com_Layer1.Visible(false);
	var_Layer1 = COM::createFromObject(exgauge1.Layers()).Item(COMVariant::createFromInt(9)); com_Layer1 = var_Layer1;
	com_Layer1.Value(COMVariant::createFromInt(25));
	exgauge1.EndUpdate();
}

Delphi 8 (.NET only)

// MouseIn event - Notifies that the cursor enters the layer.
procedure TWinForm1.AxGauge1_MouseIn(sender: System.Object; e: AxEXGAUGELib._IGaugeEvents_MouseInEvent);
begin
	with AxGauge1 do
	begin
		Layers.Item[TObject(9)].ToolTip := AxGauge1.FormatABC('`The current value is: <br><c><b>` + ((100 - A) format ``)',AxGauge1.Value,Nil,Nil);
	end
end;

with AxGauge1 do
begin
	BeginUpdate();
	PicturesPath := 'C:\Program Files\Exontrol\ExGauge\Sample\Design\Circular\Knob';
	PicturesName := '`Layer` + str(value + 1) + `.png`';
	Layers.Count := 10;
	with Layers.Item[TObject(9)] do
	begin
		DefaultRotateAngle := -126;
		OnDrag := EXGAUGELib.OnDragLayerEnum.exDoRotamove;
		RotateAngleToValue := '100 - value / 360 * 100';
		ValueToRotateAngle := '(value)/100 * 360';
	end;
	Layers.Item[TObject(3)].Visible := False;
	Layers.Item[TObject(4)].Visible := False;
	Layers.Item[TObject(9)].Value := TObject(25);
	EndUpdate();
end

Delphi (standard)

// MouseIn event - Notifies that the cursor enters the layer.
procedure TForm1.Gauge1MouseIn(ASender: TObject; Layer : Integer);
begin
	with Gauge1 do
	begin
		Layers.Item[OleVariant(9)].ToolTip := Gauge1.FormatABC('`The current value is: <br><c><b>` + ((100 - A) format ``)',Gauge1.Value,Null,Null);
	end
end;

with Gauge1 do
begin
	BeginUpdate();
	PicturesPath := 'C:\Program Files\Exontrol\ExGauge\Sample\Design\Circular\Knob';
	PicturesName := '`Layer` + str(value + 1) + `.png`';
	Layers.Count := 10;
	with Layers.Item[OleVariant(9)] do
	begin
		DefaultRotateAngle := -126;
		OnDrag := EXGAUGELib_TLB.exDoRotamove;
		RotateAngleToValue := '100 - value / 360 * 100';
		ValueToRotateAngle := '(value)/100 * 360';
	end;
	Layers.Item[OleVariant(3)].Visible := False;
	Layers.Item[OleVariant(4)].Visible := False;
	Layers.Item[OleVariant(9)].Value := OleVariant(25);
	EndUpdate();
end

VFP

*** MouseIn event - Notifies that the cursor enters the layer. ***
LPARAMETERS Layer
	with thisform.Gauge1
		.Layers.Item(9).ToolTip = thisform.Gauge1.FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",thisform.Gauge1.Value)
	endwith

with thisform.Gauge1
	.BeginUpdate
	.PicturesPath = "C:\Program Files\Exontrol\ExGauge\Sample\Design\Circular\Knob"
	.PicturesName = "`Layer` + str(value + 1) + `.png`"
	.Layers.Count = 10
	with .Layers.Item(9)
		.DefaultRotateAngle = -126
		.OnDrag = 3
		.RotateAngleToValue = "100 - value / 360 * 100"
		.ValueToRotateAngle = "(value)/100 * 360"
	endwith
	.Layers.Item(3).Visible = .F.
	.Layers.Item(4).Visible = .F.
	.Layers.Item(9).Value = 25
	.EndUpdate
endwith

dBASE Plus

/*
with (this.EXGAUGEACTIVEXCONTROL1.nativeObject)
	MouseIn = class::nativeObject_MouseIn
endwith
*/
// Notifies that the cursor enters the layer.
function nativeObject_MouseIn(Layer)
	oGauge = form.EXGAUGEACTIVEXCONTROL1.nativeObject
	oGauge.Layers.Item(9).ToolTip = Str(oGauge.FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",oGauge.Value))
return

local oGauge,var_Layer

oGauge = form.EXGAUGEACTIVEXCONTROL1.nativeObject
oGauge.BeginUpdate()
oGauge.PicturesPath = "C:\Program Files\Exontrol\ExGauge\Sample\Design\Circular\Knob"
oGauge.PicturesName = "`Layer` + str(value + 1) + `.png`"
oGauge.Layers.Count = 10
var_Layer = oGauge.Layers.Item(9)
	var_Layer.DefaultRotateAngle = -126
	var_Layer.OnDrag = 3
	var_Layer.RotateAngleToValue = "100 - value / 360 * 100"
	var_Layer.ValueToRotateAngle = "(value)/100 * 360"
oGauge.Layers.Item(3).Visible = false
oGauge.Layers.Item(4).Visible = false
oGauge.Layers.Item(9).Value = 25
oGauge.EndUpdate()

XBasic (Alpha Five)

' Notifies that the cursor enters the layer.
function MouseIn as v (Layer  as  N)
	oGauge = topparent:CONTROL_ACTIVEX1.activex
	oGauge.Layers.Item(9).ToolTip = oGauge.FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",oGauge.Value)
end function

Dim oGauge as P
Dim var_Layer as P

oGauge = topparent:CONTROL_ACTIVEX1.activex
oGauge.BeginUpdate()
oGauge.PicturesPath = "C:\Program Files\Exontrol\ExGauge\Sample\Design\Circular\Knob"
oGauge.PicturesName = "`Layer` + str(value + 1) + `.png`"
oGauge.Layers.Count = 10
var_Layer = oGauge.Layers.Item(9)
	var_Layer.DefaultRotateAngle = -126
	var_Layer.OnDrag = 3
	var_Layer.RotateAngleToValue = "100 - value / 360 * 100"
	var_Layer.ValueToRotateAngle = "(value)/100 * 360"
oGauge.Layers.Item(3).Visible = .f.
oGauge.Layers.Item(4).Visible = .f.
oGauge.Layers.Item(9).Value = 25
oGauge.EndUpdate()

Visual Objects

METHOD OCX_Exontrol1MouseIn(Layer) CLASS MainDialog
	// MouseIn event - Notifies that the cursor enters the layer.
	oDCOCX_Exontrol1:Layers:[Item,9]:ToolTip := AsString(oDCOCX_Exontrol1:FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",oDCOCX_Exontrol1:Value,nil,nil))
RETURN NIL

local var_Layer as ILayer

oDCOCX_Exontrol1:BeginUpdate()
oDCOCX_Exontrol1:PicturesPath := "C:\Program Files\Exontrol\ExGauge\Sample\Design\Circular\Knob"
oDCOCX_Exontrol1:PicturesName := "`Layer` + str(value + 1) + `.png`"
oDCOCX_Exontrol1:Layers:Count := 10
var_Layer := oDCOCX_Exontrol1:Layers:[Item,9]
	var_Layer:DefaultRotateAngle := -126
	var_Layer:OnDrag := exDoRotamove
	var_Layer:RotateAngleToValue := "100 - value / 360 * 100"
	var_Layer:ValueToRotateAngle := "(value)/100 * 360"
oDCOCX_Exontrol1:Layers:[Item,3]:Visible := false
oDCOCX_Exontrol1:Layers:[Item,4]:Visible := false
oDCOCX_Exontrol1:Layers:[Item,9]:Value := 25
oDCOCX_Exontrol1:EndUpdate()

PowerBuilder

/*begin event MouseIn(long  Layer) - Notifies that the cursor enters the layer.*/
/*
	oGauge = ole_1.Object
	oGauge.Layers.Item(9).ToolTip = String(oGauge.FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",oGauge.Value))
*/
/*end event MouseIn*/

OleObject oGauge,var_Layer

oGauge = ole_1.Object
oGauge.BeginUpdate()
oGauge.PicturesPath = "C:\Program Files\Exontrol\ExGauge\Sample\Design\Circular\Knob"
oGauge.PicturesName = "`Layer` + str(value + 1) + `.png`"
oGauge.Layers.Count = 10
var_Layer = oGauge.Layers.Item(9)
	var_Layer.DefaultRotateAngle = -126
	var_Layer.OnDrag = 3
	var_Layer.RotateAngleToValue = "100 - value / 360 * 100"
	var_Layer.ValueToRotateAngle = "(value)/100 * 360"
oGauge.Layers.Item(3).Visible = false
oGauge.Layers.Item(4).Visible = false
oGauge.Layers.Item(9).Value = 25
oGauge.EndUpdate()

Visual DataFlex

// Notifies that the cursor enters the layer.
Procedure OnComMouseIn Integer   llLayer
	Forward Send OnComMouseIn llLayer
	Variant voLayers
	Get ComLayers to voLayers
	Handle hoLayers
	Get Create (RefClass(cComLayers)) to hoLayers
	Set pvComObject of hoLayers to voLayers
		Variant voLayer
		Get ComItem of hoLayers 9 to voLayer
		Handle hoLayer
		Get Create (RefClass(cComLayer)) to hoLayer
		Set pvComObject of hoLayer to voLayer
			Variant v
				Variant vA
					Get ComValue to vA
				Get ComFormatABC "`The current value is: <br><c><b>` + ((100 - A) format ``)" vA Nothing Nothing to v
			Set ComToolTip of hoLayer to v
		Send Destroy to hoLayer
	Send Destroy to hoLayers
End_Procedure

Procedure OnCreate
	Forward Send OnCreate
	Send ComBeginUpdate
	Set ComPicturesPath to "C:\Program Files\Exontrol\ExGauge\Sample\Design\Circular\Knob"
	Set ComPicturesName to "`Layer` + str(value + 1) + `.png`"
	Variant voLayers1
	Get ComLayers to voLayers1
	Handle hoLayers1
	Get Create (RefClass(cComLayers)) to hoLayers1
	Set pvComObject of hoLayers1 to voLayers1
		Set ComCount of hoLayers1 to 10
	Send Destroy to hoLayers1
	Variant voLayers2
	Get ComLayers to voLayers2
	Handle hoLayers2
	Get Create (RefClass(cComLayers)) to hoLayers2
	Set pvComObject of hoLayers2 to voLayers2
		Variant voLayer1
		Get ComItem of hoLayers2 9 to voLayer1
		Handle hoLayer1
		Get Create (RefClass(cComLayer)) to hoLayer1
		Set pvComObject of hoLayer1 to voLayer1
			Set ComDefaultRotateAngle of hoLayer1 to -126
			Set ComOnDrag of hoLayer1 to OLEexDoRotamove
			Set ComRotateAngleToValue of hoLayer1 to "100 - value / 360 * 100"
			Set ComValueToRotateAngle of hoLayer1 to "(value)/100 * 360"
		Send Destroy to hoLayer1
	Send Destroy to hoLayers2
	Variant voLayers3
	Get ComLayers to voLayers3
	Handle hoLayers3
	Get Create (RefClass(cComLayers)) to hoLayers3
	Set pvComObject of hoLayers3 to voLayers3
		Variant voLayer2
		Get ComItem of hoLayers3 3 to voLayer2
		Handle hoLayer2
		Get Create (RefClass(cComLayer)) to hoLayer2
		Set pvComObject of hoLayer2 to voLayer2
			Set ComVisible of hoLayer2 to False
		Send Destroy to hoLayer2
	Send Destroy to hoLayers3
	Variant voLayers4
	Get ComLayers to voLayers4
	Handle hoLayers4
	Get Create (RefClass(cComLayers)) to hoLayers4
	Set pvComObject of hoLayers4 to voLayers4
		Variant voLayer3
		Get ComItem of hoLayers4 4 to voLayer3
		Handle hoLayer3
		Get Create (RefClass(cComLayer)) to hoLayer3
		Set pvComObject of hoLayer3 to voLayer3
			Set ComVisible of hoLayer3 to False
		Send Destroy to hoLayer3
	Send Destroy to hoLayers4
	Variant voLayers5
	Get ComLayers to voLayers5
	Handle hoLayers5
	Get Create (RefClass(cComLayers)) to hoLayers5
	Set pvComObject of hoLayers5 to voLayers5
		Variant voLayer4
		Get ComItem of hoLayers5 9 to voLayer4
		Handle hoLayer4
		Get Create (RefClass(cComLayer)) to hoLayer4
		Set pvComObject of hoLayer4 to voLayer4
			Set ComValue of hoLayer4 to 25
		Send Destroy to hoLayer4
	Send Destroy to hoLayers5
	Send ComEndUpdate
End_Procedure

XBase++

PROCEDURE OnMouseIn(oGauge,Layer)
	oGauge:Layers:Item(9):ToolTip := Transform(oGauge:FormatABC("`The current value is: <br><c><b>` + ((100 - A) format ``)",oGauge:Value()),"")
RETURN

#include "AppEvent.ch"
#include "ActiveX.ch"

PROCEDURE Main
 	LOCAL oForm
	LOCAL nEvent := 0, mp1 := NIL, mp2 := NIL, oXbp := NIL
	LOCAL oGauge
	LOCAL oLayer

	oForm := XbpDialog():new( AppDesktop() )
	oForm:drawingArea:clipChildren := .T.
	oForm:create( ,,{100,100}, {640,480},, .F. )
	oForm:close  := {|| PostAppEvent( xbeP_Quit )}

	oGauge := XbpActiveXControl():new( oForm:drawingArea )
	oGauge:CLSID  := "Exontrol.Gauge.1" /*{91628F12-393C-44EF-A558-83ED1790AAD3}*/
	oGauge:create(,, {10,60},{610,370} )

		oGauge:MouseIn := {|Layer| OnMouseIn(oGauge,Layer)} /*Notifies that the cursor enters the layer.*/

		oGauge:BeginUpdate()
		oGauge:PicturesPath := "C:\Program Files\Exontrol\ExGauge\Sample\Design\Circular\Knob"
		oGauge:PicturesName := "`Layer` + str(value + 1) + `.png`"
		oGauge:Layers():Count := 10
		oLayer := oGauge:Layers:Item(9)
			oLayer:DefaultRotateAngle := -126
			oLayer:OnDrag := 3/*exDoRotamove*/
			oLayer:RotateAngleToValue := "100 - value / 360 * 100"
			oLayer:ValueToRotateAngle := "(value)/100 * 360"
		oGauge:Layers:Item(3):Visible := .F.
		oGauge:Layers:Item(4):Visible := .F.
		oGauge:Layers:Item(9):Value := 25
		oGauge:EndUpdate()

	oForm:Show()
	DO WHILE nEvent != xbeP_Quit
		nEvent := AppEvent( @mp1, @mp2, @oXbp )
		oXbp:handleEvent( nEvent, mp1, mp2 )
	ENDDO
RETURN

		Type	Description
		String	A String expression that defines the layer's HTML tooltip that's displayed when the cursor hovers the layer.
