property Pool.HeaderPattern (HeaderType as HeaderTypeEnum) as Pattern
Specifies the pattern to be shown on the header's background.

TypeDescription
HeaderType as HeaderTypeEnum A HeaderTypeEnum expression that indicates the horizontal ( top/bottom ) or vertical ( left/right) header.
Pattern A Pattern object that indicates the pattern to be shown on the header's background.
The HeaderPattern property specifies the pattern to be shown on the pool's header background. The Pattern property specifies the pattern/frame to be shown on the pool's background. The Pattern property of the Lane object specifies the pattern to be shown on the lane's background. The Pattern property of the HeaderLane object specifies the pattern to be shown on the lane's header background. The Pattern property of the HeaderLane object specifies the pattern to be shown on the lane's header background. The AllowHeaderExt property specifies how the corners of the pool are combined with the headers of the pool.

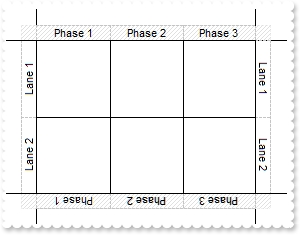

The following screen shot shows pool with a different pattern/color:
