property Pool.Lane (LaneType as LaneTypeEnum) as Lane
Retrieves the horizontal/vertical lane of the pool.

TypeDescription
LaneType as LaneTypeEnum A LaneType expression that indicates whether the horizontal or vertical lanes are requested.
Lane A Lane object being accessed.

The Lane property of the Pool retrieves the horizontal/vertical lane of the pool. The Children property retrieves a collection of child-lanes. The LaneByID property returns a Lane object giving its identifier.

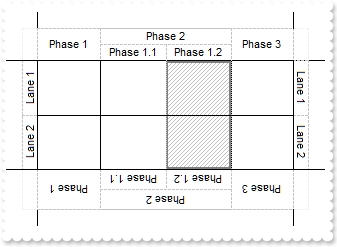

The following screen shot marks the lane itself:

The following sample creates a pool with horizontal and lanes.

VBA (MS Access, Excell...)

With SwimLane1
	.BeginUpdate
	With .Pools.Add(-250,-150,500,250)
		.Lane(0).Children.Count = 4
		.Lane(1).Children.Count = 4
	End With
	.EndUpdate
End With

VB6

With SwimLane1
	.BeginUpdate
	With .Pools.Add(-250,-150,500,250)
		.Lane(exLaneHorizontal).Children.Count = 4
		.Lane(exLaneVertical).Children.Count = 4
	End With
	.EndUpdate
End With

VB.NET

With Exswimlane1
	.BeginUpdate()
	With .Pools.Add(-250,-150,500,250)
		.get_Lane(exontrol.EXSWIMLANELib.LaneTypeEnum.exLaneHorizontal).Children.Count = 4
		.get_Lane(exontrol.EXSWIMLANELib.LaneTypeEnum.exLaneVertical).Children.Count = 4
	End With
	.EndUpdate()
End With

VB.NET for /COM

With AxSwimLane1
	.BeginUpdate()
	With .Pools.Add(-250,-150,500,250)
		.Lane(EXSWIMLANELib.LaneTypeEnum.exLaneHorizontal).Children.Count = 4
		.Lane(EXSWIMLANELib.LaneTypeEnum.exLaneVertical).Children.Count = 4
	End With
	.EndUpdate()
End With

C++

/*
	Copy and paste the following directives to your header file as
	it defines the namespace 'EXSWIMLANELib' for the library: 'ExSwimLane 1.0 Control Library'

	#import <ExSwimLane.dll>
	using namespace EXSWIMLANELib;
*/
EXSWIMLANELib::ISwimLanePtr spSwimLane1 = GetDlgItem(IDC_SWIMLANE1)->GetControlUnknown();
spSwimLane1->BeginUpdate();
EXSWIMLANELib::IPoolPtr var_Pool = spSwimLane1->GetPools()->Add(long(-250),long(-150),long(500),long(250));
	var_Pool->GetLane(EXSWIMLANELib::exLaneHorizontal)->GetChildren()->PutCount(4);
	var_Pool->GetLane(EXSWIMLANELib::exLaneVertical)->GetChildren()->PutCount(4);
spSwimLane1->EndUpdate();

C++ Builder

SwimLane1->BeginUpdate();
Exswimlanelib_tlb::IPoolPtr var_Pool = SwimLane1->Pools->Add(TVariant(-250),TVariant(-150),TVariant(500),TVariant(250));
	var_Pool->get_Lane(Exswimlanelib_tlb::LaneTypeEnum::exLaneHorizontal)->Children->Count = 4;
	var_Pool->get_Lane(Exswimlanelib_tlb::LaneTypeEnum::exLaneVertical)->Children->Count = 4;
SwimLane1->EndUpdate();

C#

exswimlane1.BeginUpdate();
exontrol.EXSWIMLANELib.Pool var_Pool = exswimlane1.Pools.Add(-250,-150,500,250);
	var_Pool.get_Lane(exontrol.EXSWIMLANELib.LaneTypeEnum.exLaneHorizontal).Children.Count = 4;
	var_Pool.get_Lane(exontrol.EXSWIMLANELib.LaneTypeEnum.exLaneVertical).Children.Count = 4;
exswimlane1.EndUpdate();

JScript/JavaScript

<BODY onload="Init()">
<OBJECT CLASSID="clsid:AFA73FCE-6609-4062-AE6A-4BAD6D96A025" id="SwimLane1"></OBJECT>

<SCRIPT LANGUAGE="JScript">
function Init()
{
	SwimLane1.BeginUpdate();
	var var_Pool = SwimLane1.Pools.Add(-250,-150,500,250);
		var_Pool.Lane(0).Children.Count = 4;
		var_Pool.Lane(1).Children.Count = 4;
	SwimLane1.EndUpdate();
}
</SCRIPT>
</BODY>

VBScript

<BODY onload="Init()">
<OBJECT CLASSID="clsid:AFA73FCE-6609-4062-AE6A-4BAD6D96A025" id="SwimLane1"></OBJECT>

<SCRIPT LANGUAGE="VBScript">
Function Init()
	With SwimLane1
		.BeginUpdate
		With .Pools.Add(-250,-150,500,250)
			.Lane(0).Children.Count = 4
			.Lane(1).Children.Count = 4
		End With
		.EndUpdate
	End With
End Function
</SCRIPT>
</BODY>

C# for /COM

axSwimLane1.BeginUpdate();
EXSWIMLANELib.Pool var_Pool = axSwimLane1.Pools.Add(-250,-150,500,250);
	var_Pool.get_Lane(EXSWIMLANELib.LaneTypeEnum.exLaneHorizontal).Children.Count = 4;
	var_Pool.get_Lane(EXSWIMLANELib.LaneTypeEnum.exLaneVertical).Children.Count = 4;
axSwimLane1.EndUpdate();

X++ (Dynamics Ax 2009)

public void init()
{
	COM com_Lane,com_Lanes,com_Pool;
	anytype var_Lane,var_Lanes,var_Pool;
	;

	super();

	exswimlane1.BeginUpdate();
	var_Pool = COM::createFromObject(exswimlane1.Pools()).Add(COMVariant::createFromInt(-250),COMVariant::createFromInt(-150),COMVariant::createFromInt(500),COMVariant::createFromInt(250)); com_Pool = var_Pool;
		var_Lane = COM::createFromObject(com_Pool.Lane(0/*exLaneHorizontal*/)); com_Lane = var_Lane;
		var_Lanes = COM::createFromObject(com_Lane).Children(); com_Lanes = var_Lanes;
		com_Lanes.Count(4);
		var_Lane = COM::createFromObject(com_Pool.Lane(1/*exLaneVertical*/)); com_Lane = var_Lane;
		var_Lanes = COM::createFromObject(com_Lane).Children(); com_Lanes = var_Lanes;
		com_Lanes.Count(4);
	exswimlane1.EndUpdate();
}

Delphi 8 (.NET only)

with AxSwimLane1 do
begin
	BeginUpdate();
	with Pools.Add(TObject(-250),TObject(-150),TObject(500),TObject(250)) do
	begin
		Lane[EXSWIMLANELib.LaneTypeEnum.exLaneHorizontal].Children.Count := 4;
		Lane[EXSWIMLANELib.LaneTypeEnum.exLaneVertical].Children.Count := 4;
	end;
	EndUpdate();
end

Delphi (standard)

with SwimLane1 do
begin
	BeginUpdate();
	with Pools.Add(OleVariant(-250),OleVariant(-150),OleVariant(500),OleVariant(250)) do
	begin
		Lane[EXSWIMLANELib_TLB.exLaneHorizontal].Children.Count := 4;
		Lane[EXSWIMLANELib_TLB.exLaneVertical].Children.Count := 4;
	end;
	EndUpdate();
end

VFP

with thisform.SwimLane1
	.BeginUpdate
	with .Pools.Add(-250,-150,500,250)
		.Lane(0).Children.Count = 4
		.Lane(1).Children.Count = 4
	endwith
	.EndUpdate
endwith

dBASE Plus

local oSwimLane,var_Lanes,var_Lanes1,var_Pool

oSwimLane = form.EXSWIMLANEACTIVEXCONTROL1.nativeObject
oSwimLane.BeginUpdate()
var_Pool = oSwimLane.Pools.Add(-250,-150,500,250)
	// var_Pool.Lane(0).Children.Count = 4
	var_Lanes = var_Pool.Lane(0).Children
	with (oSwimLane)
		TemplateDef = [dim var_Lanes]
		TemplateDef = var_Lanes
		Template = [var_Lanes.Count = 4]
	endwith
	// var_Pool.Lane(1).Children.Count = 4
	var_Lanes1 = var_Pool.Lane(1).Children
	with (oSwimLane)
		TemplateDef = [dim var_Lanes1]
		TemplateDef = var_Lanes1
		Template = [var_Lanes1.Count = 4]
	endwith
oSwimLane.EndUpdate()

XBasic (Alpha Five)

Dim oSwimLane as P
Dim var_Lanes as local
Dim var_Lanes1 as local
Dim var_Pool as P

oSwimLane = topparent:CONTROL_ACTIVEX1.activex
oSwimLane.BeginUpdate()
var_Pool = oSwimLane.Pools.Add(-250,-150,500,250)
	' var_Pool.Lane(0).Children.Count = 4
	var_Lanes = var_Pool.Lane(0).Children
	oSwimLane.TemplateDef = "dim var_Lanes"
	oSwimLane.TemplateDef = var_Lanes
	oSwimLane.Template = "var_Lanes.Count = 4"

	' var_Pool.Lane(1).Children.Count = 4
	var_Lanes1 = var_Pool.Lane(1).Children
	oSwimLane.TemplateDef = "dim var_Lanes1"
	oSwimLane.TemplateDef = var_Lanes1
	oSwimLane.Template = "var_Lanes1.Count = 4"

oSwimLane.EndUpdate()

Visual Objects

local var_Pool as IPool

oDCOCX_Exontrol1:BeginUpdate()
var_Pool := oDCOCX_Exontrol1:Pools:Add(-250,-150,500,250)
	var_Pool:[Lane,exLaneHorizontal]:Children:Count := 4
	var_Pool:[Lane,exLaneVertical]:Children:Count := 4
oDCOCX_Exontrol1:EndUpdate()

PowerBuilder

OleObject oSwimLane,var_Pool

oSwimLane = ole_1.Object
oSwimLane.BeginUpdate()
var_Pool = oSwimLane.Pools.Add(-250,-150,500,250)
	var_Pool.Lane(0).Children.Count = 4
	var_Pool.Lane(1).Children.Count = 4
oSwimLane.EndUpdate()

Visual DataFlex

Procedure OnCreate
	Forward Send OnCreate
	Send ComBeginUpdate
	Variant voPools
	Get ComPools to voPools
	Handle hoPools
	Get Create (RefClass(cComPools)) to hoPools
	Set pvComObject of hoPools to voPools
		Variant voPool
		Get ComAdd of hoPools -250 -150 500 250 to voPool
		Handle hoPool
		Get Create (RefClass(cComPool)) to hoPool
		Set pvComObject of hoPool to voPool
			Variant voLane
			Get ComLane of hoPool OLEexLaneHorizontal to voLane
			Handle hoLane
			Get Create (RefClass(cComLane)) to hoLane
			Set pvComObject of hoLane to voLane
				Variant voLanes
				Get ComChildren of hoLane to voLanes
				Handle hoLanes
				Get Create (RefClass(cComLanes)) to hoLanes
				Set pvComObject of hoLanes to voLanes
					Set ComCount of hoLanes to 4
				Send Destroy to hoLanes
			Send Destroy to hoLane
			Variant voLane1
			Get ComLane of hoPool OLEexLaneVertical to voLane1
			Handle hoLane1
			Get Create (RefClass(cComLane)) to hoLane1
			Set pvComObject of hoLane1 to voLane1
				Variant voLanes1
				Get ComChildren of hoLane1 to voLanes1
				Handle hoLanes1
				Get Create (RefClass(cComLanes)) to hoLanes1
				Set pvComObject of hoLanes1 to voLanes1
					Set ComCount of hoLanes1 to 4
				Send Destroy to hoLanes1
			Send Destroy to hoLane1
		Send Destroy to hoPool
	Send Destroy to hoPools
	Send ComEndUpdate
End_Procedure

XBase++

#include "AppEvent.ch"
#include "ActiveX.ch"

PROCEDURE Main
 	LOCAL oForm
	LOCAL nEvent := 0, mp1 := NIL, mp2 := NIL, oXbp := NIL
	LOCAL oPool
	LOCAL oSwimLane

	oForm := XbpDialog():new( AppDesktop() )
	oForm:drawingArea:clipChildren := .T.
	oForm:create( ,,{100,100}, {640,480},, .F. )
	oForm:close  := {|| PostAppEvent( xbeP_Quit )}

	oSwimLane := XbpActiveXControl():new( oForm:drawingArea )
	oSwimLane:CLSID  := "Exontrol.SwimLane.1" /*{AFA73FCE-6609-4062-AE6A-4BAD6D96A025}*/
	oSwimLane:create(,, {10,60},{610,370} )

		oSwimLane:BeginUpdate()
		oPool := oSwimLane:Pools():Add(-250,-150,500,250)
			oPool:Lane(0/*exLaneHorizontal*/):Children():Count := 4
			oPool:Lane(1/*exLaneVertical*/):Children():Count := 4
		oSwimLane:EndUpdate()

	oForm:Show()
	DO WHILE nEvent != xbeP_Quit
		nEvent := AppEvent( @mp1, @mp2, @oXbp )
		oXbp:handleEvent( nEvent, mp1, mp2 )
	ENDDO
RETURN
